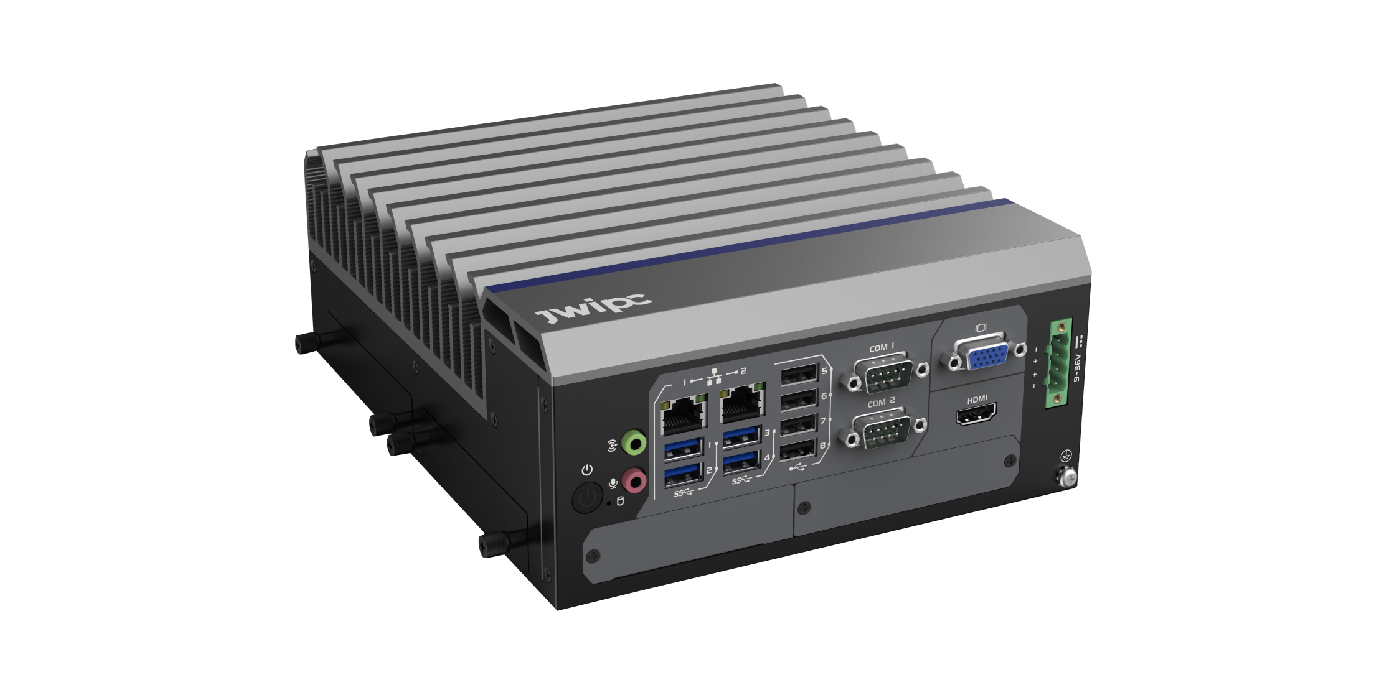

JMC-7313
Powered by the Intel® W480E/H420E chipset, JMC-7313 supports flexible interface expansion through I/O modules and transfer cards. This makes it ideal for applications in industrial automation, data acquisition, motion control, optical inspection, logistics and warehousing, intelligent sorting, intelligent transportation, energy, robotics, and other industries.
- •
- LGA1200 Gen 10th&11th Intel® Core™i9/i7/i5/i3/Pentium®/Celeron®/Xeon® Processor with W480E/H420E Chipset
- •
- Dual-channel DDR4 2666/2933 MHz SODIMM Memory up to 64 GB(W480E SKU supports ECC)
- •
- VGA and HDMI display outputs with optional support for a third display
- •
- 2xGbE LAN,8xUSB
- •
- 2xRS232/422/485 and 4xRS232(optional)
- •
- 1x 2.5" HDD/SSD (supports up to 2 drives), 1x mSATA
- •
- DC 9~36V wide voltage input
- •
- Supports modular and flexible expansion
System | Processor | LGA1200 Gen 10th&11th Core™i3/i5/i7/i9 Pentium®/Celeron®/Xeon® Processor |
Chipset | W480E/H420E | |
BIOS | AMI UEFI BIOS | |
Memory | 2x DDR4 2933/2666 MHz SO-DIMM, up to 64GB (W480E SKU support ECC | |
OS | Windows 10, Linux, Ubuntu 20.04 | |
I/O Interface | USB | W480E:2xUSB3.2(Gen2), 6xUSB3.2(Gen1), 2x USB2.0(Internal), 1x USB dongle(Internal) H420E:6xUSB3.2(Gen1), 2xUSB2.0, 1xUSB2.0(Internal) |
COM | 2x RS232/422/485, 4x RS232 (optional) | |
LED | 1xPower, 1xHDD | |

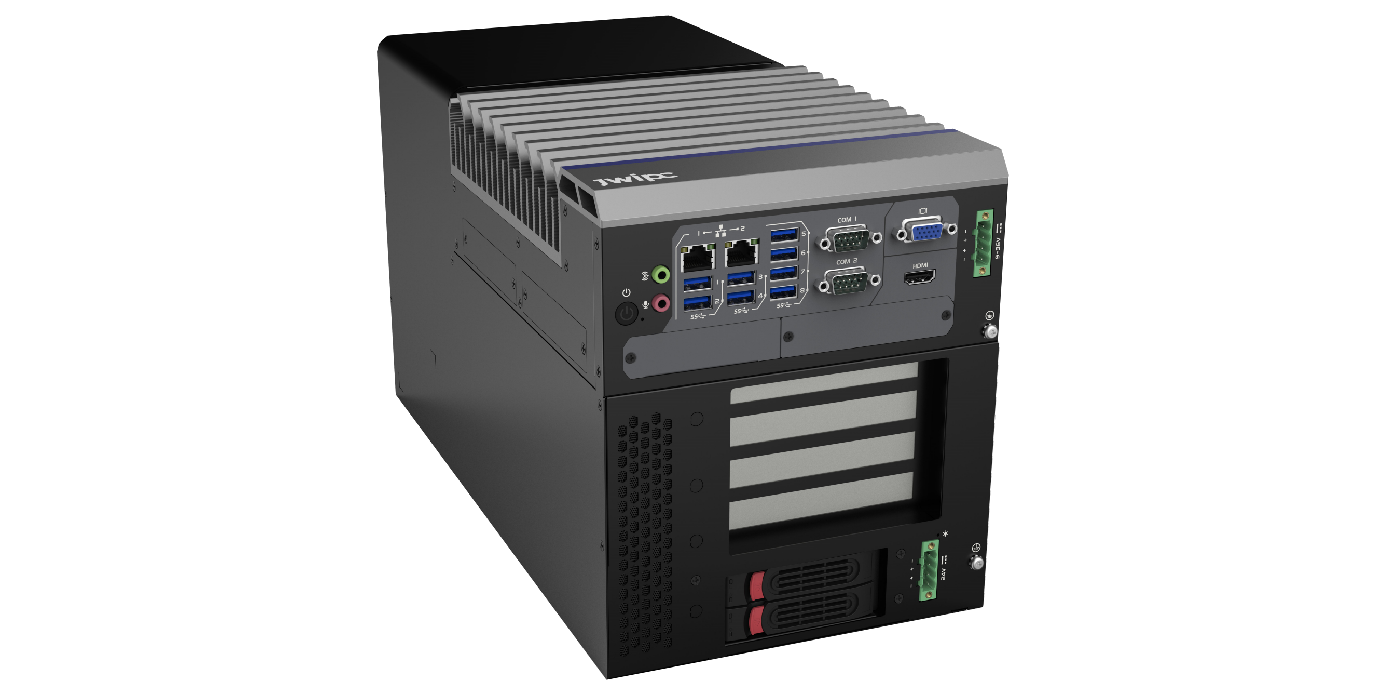

Expension | Mini-PCIe/ PCI/PCIe | W480E: 1 x mini PCIe (via Nano-SIM), 1 x mini PCIe/mSATA H420E: 1 x mini PCIe (via Nano-SIM), 1 x mSATA Expension Layer：1PCIex16+2PCI |
Display | Graphics Processor | Intel®UHD Graphics 630/610 |
Interface | Independent dual display, with reserved onboard display pins supporting HDMI 2nd/DP/DVI 1xVGA, VGA up to 1920*1200@60Hz 1xHDMI,HDMI up to 4096*2160@24Hz | |
Storage | Storage Device | 2 x 2.5”HDD/SSD(up to 2) , W480E support SATA RAID 0/1, 1 x mSATA |
Audio | Audio IC | Realtek ALC897 |
Audio Interface | 1xMic-in, 1xLine-out | |
Ethernet | LAN IC | 1xI219LM, 1x I210AT |
Interface | 2xRJ45 | |
Power | Power Input | DC IN 9~36V |
Power Interface | 4-Pole Phoenix DC plug in | |
Others | Watchdog Timer | 1 to 255 sec./min. per step |
TPM | optional | |
Mechanical | Dimensions | 230mm(W)×192mm(D)×158mm(H) |
Weight | 4.43KG | |
Mounting | Desk/Wall-mounting | |
Environmental | Operating Temp. | 65W： -10℃~50℃（with ）, 35W： -10℃~60℃（带风流） |
Storage Temp. | -40~85℃ | |
Humidity | 95%@40℃ non-condensing | |
Shock | With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration | |
Vibration | With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis With HDD:1Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis |
