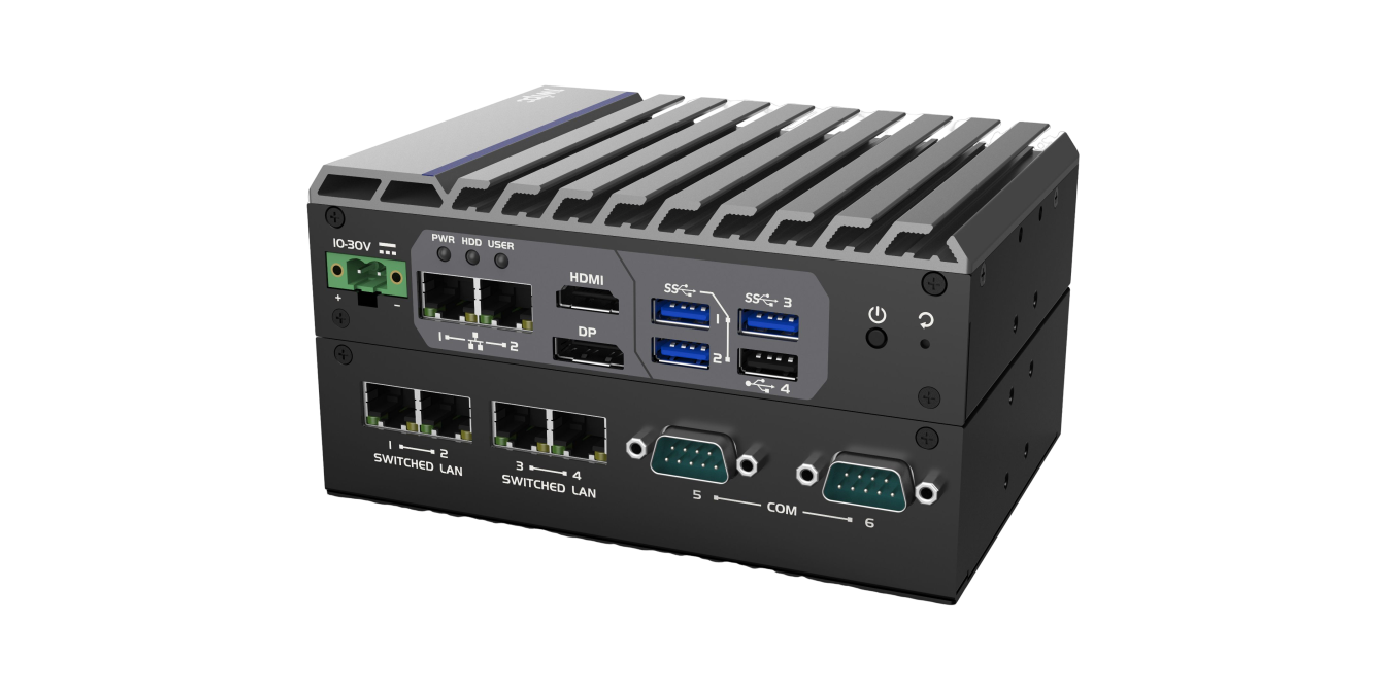

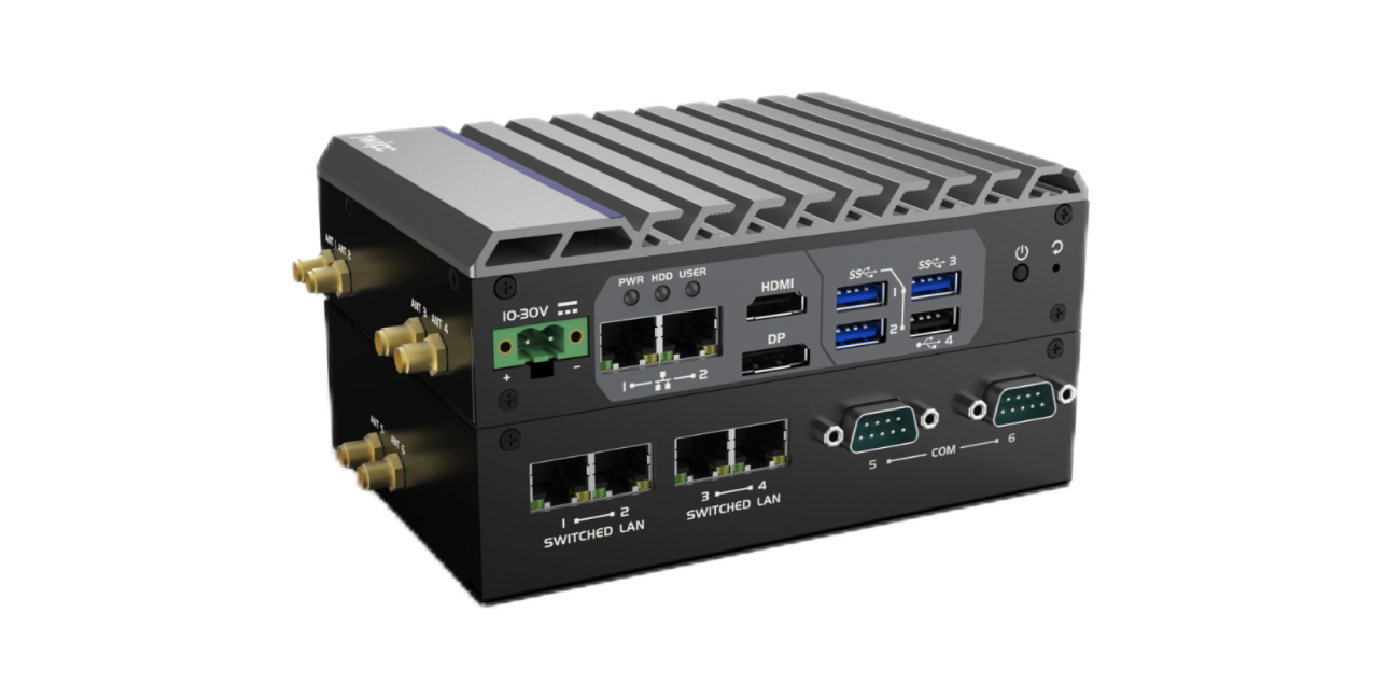

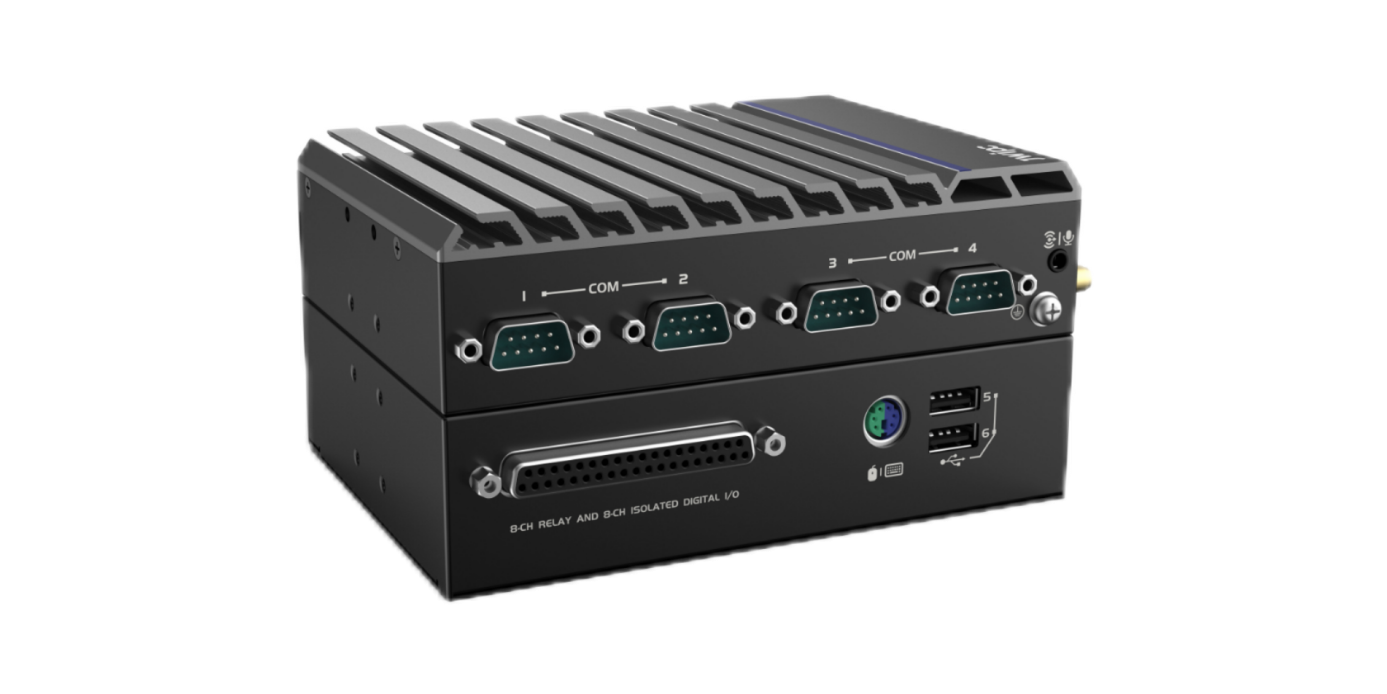

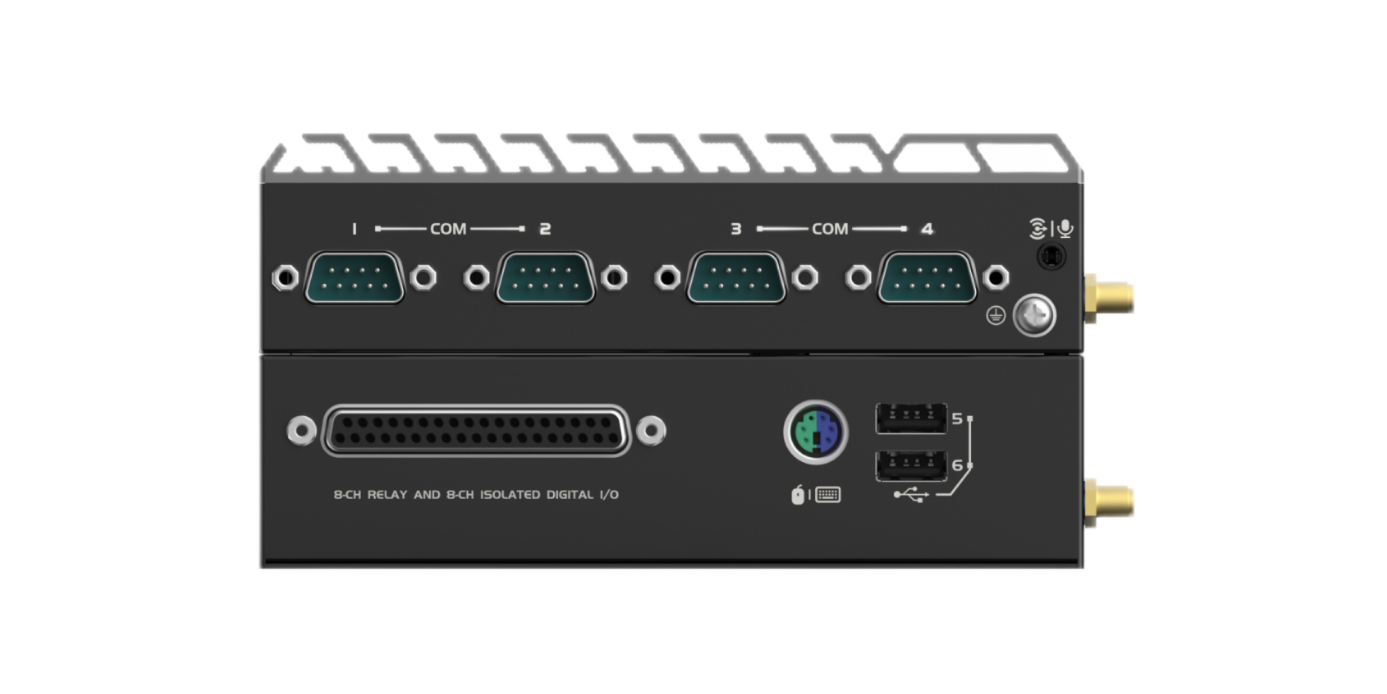

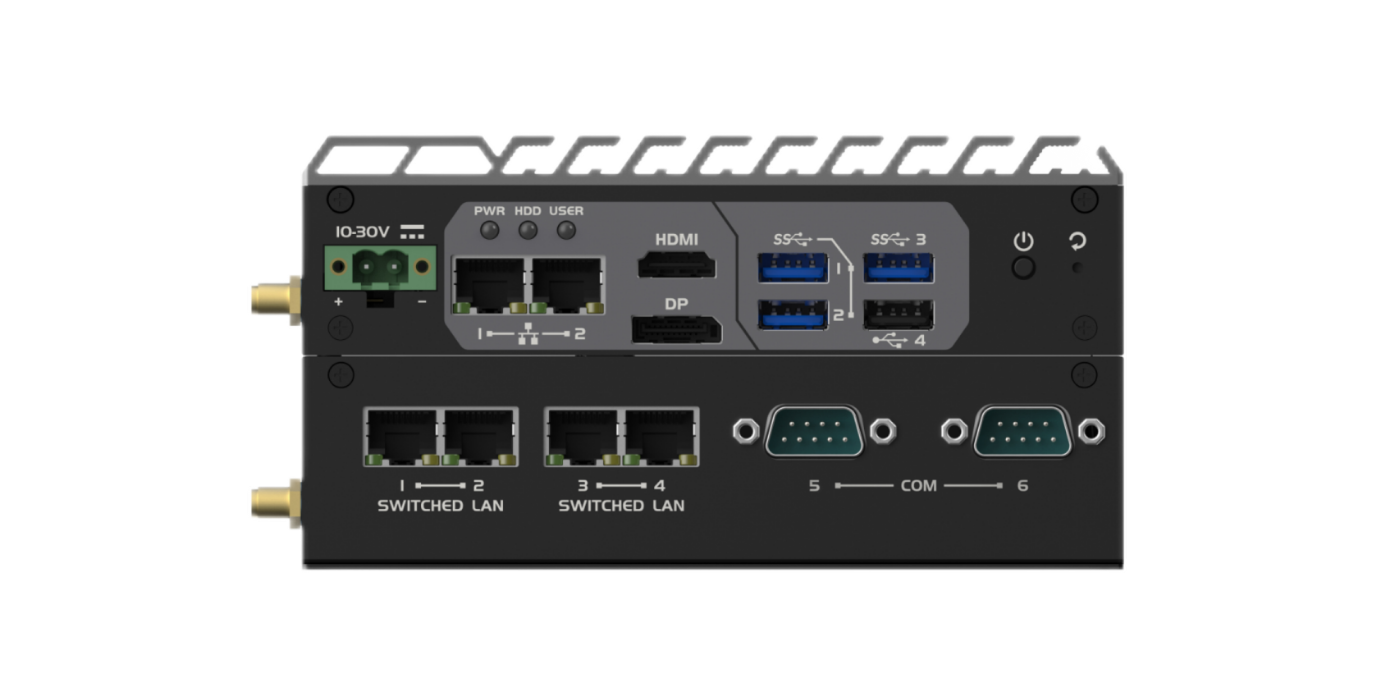

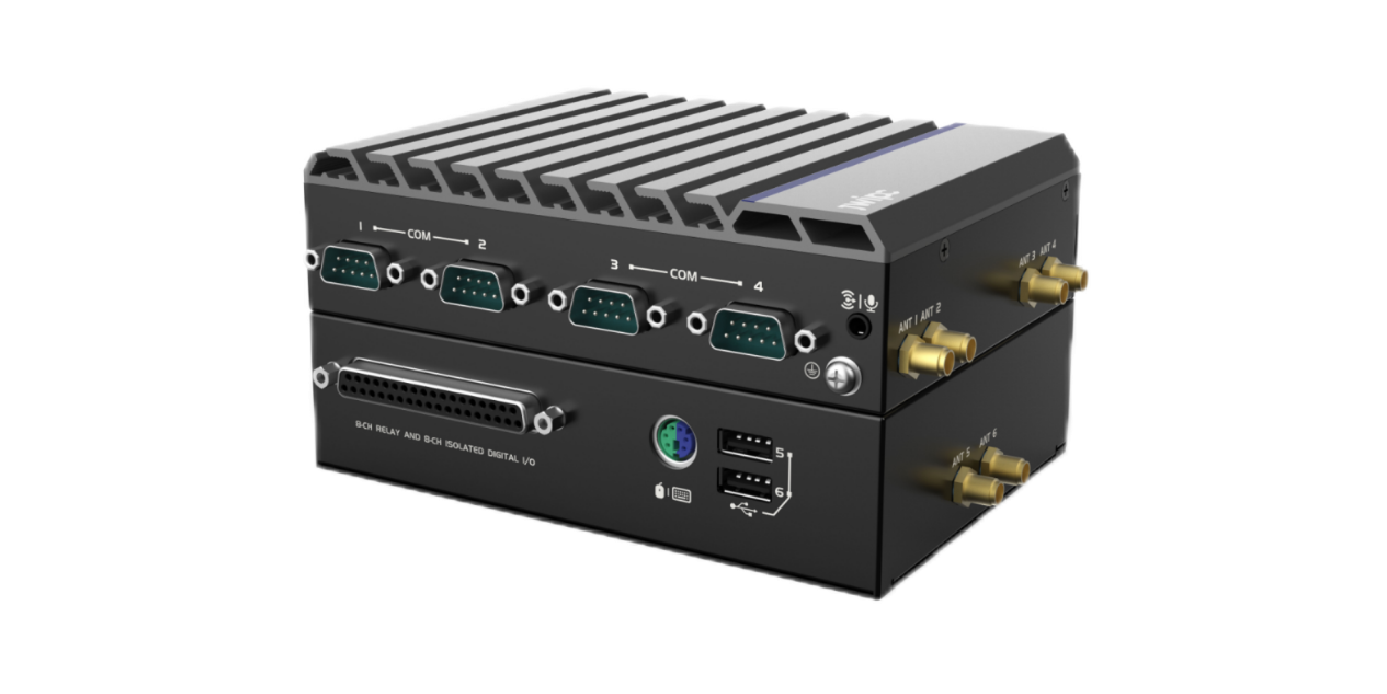

JEC-3011
The JEC-3011 is a BOX PC powered by the Intel® Elkhart Lake J6413 quad-core processor, offering strong performance and a wide range of interfaces. It supports up to 32GB of DDR4 memory and provides dual display outputs via HDMI and DP. The system also supports multiple expansion options, including 4G/5G modules, SSD storage, and Wi-Fi + Bluetooth modules. The JEC-3011 features 6 COM ports, 6 LAN ports, and 6 USB ports, supports various operating systems, and offers excellent shock and vibration resistance, making it ideal for diverse industrial applications.
- •
- Intel® Elkhart Lake J6413/J6412 processors
- •
- Single SO-DIMM DDR4-3200, up to 32GB
- •
- Supports dual displays via HDMI and DP
- •
- Dual 2.5Gb RJ45 Ethernet and 4 Gigabit RJ45 Ethernet ports
- •
- Supports M.2 3042/3052 for 4G/5G modules
- •
- Supports M.2 2230 for Wi-Fi + Bluetooth module
- •
- Supports M.2 Key-M 2242/2280 SSD (SATA signal)
- •
- 4 RS232/422/485 serial ports, 2 RS232 serial ports
- •
- 3 USB 3.0 ports, 3 USB 2.0 ports
- •
- Industrial-grade port protection against static and surges
System | Processor | Intel® Celeron® Elkhart Lake J6413, TDP 6W |
Chipset | Intel® Elkhart Lake SoC | |
BIOS | AMI UEFI BIOS | |
Memory | 1xDDR4 3200MHz SO-DIMM, up to 32GB | |
OS | Windows10, Linux | |
I/O interface | USB | 3xUSB 3.0, 3xUSB 2.0 |
Serial | 4xRS232/422/485, 2xRS232 | |
GPIO | 1x16bit GPIO | |
PS2 | 1,keyboard&mouse | |
LED | 1xPower, 1xHDD, 1xUser | |
Expansion | PCIe/M.2/Mini-PCIe | 1xM.2 Key B-Socket (3042, USB3+PCIe x1) support 4G/5G module 1xM.2 2230 (Mini-PCIe slot,optional), support half Wifi+BT module |
Graphics | Graphics Processor | Intel®UHD Gen.10 Graphics Engines |
Interface | 1xDP, up to 4096 x 2160 @60Hz 1xHDMI,up to 4096 x 2160 @60Hz | |
Storage | SATA/M.2/mSATA | 1xM.2 Key-M Socket (2242/2280,SATA) 1 x 2.5" HDD/SSD storage bay(SATA3.0) |
Audio | Audio IC | Realtek ALC897 |
Audio Interface | 1xMic-in, 1xLine-out（2 in 1） | |
Ethernet | LAN IC | 2x i226V, 1xGSW140A3MC |
Interface | 6xRJ45 | |
Power | Power Input | 10V to 30V, DC-in |
Power Interface | 2-Pole Phoenix DC plug in | |
Others | Watchdog Timer | 1 to 255 sec./min. per step |
TPM | Infineon SLB9670 supports TPM 2.0 | |
Mechanical | Dimensions | 150mm(L)×107mm(W)×79.1mm(H) |
Weight | 1.18KG | |
Mounting | Desk/Wall-mounting, Din rail mounting | |
Environment | Operating Temp. | -10~60℃w/ 0.7m/s airflow |
Storage Temp. | -40~85℃ | |
Humidity | 10%~85% Humidity, non-condensing | |
Shock | With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration | |
Vibration | With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis |
