JADNTH03

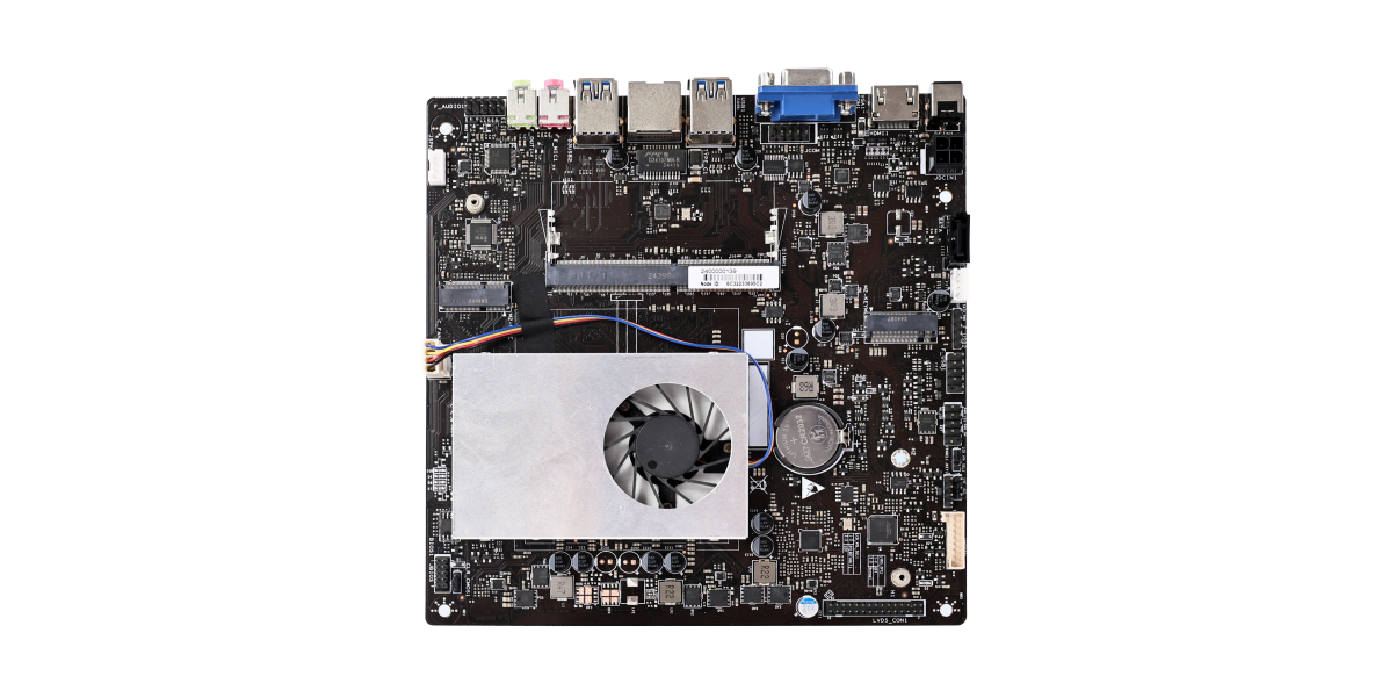

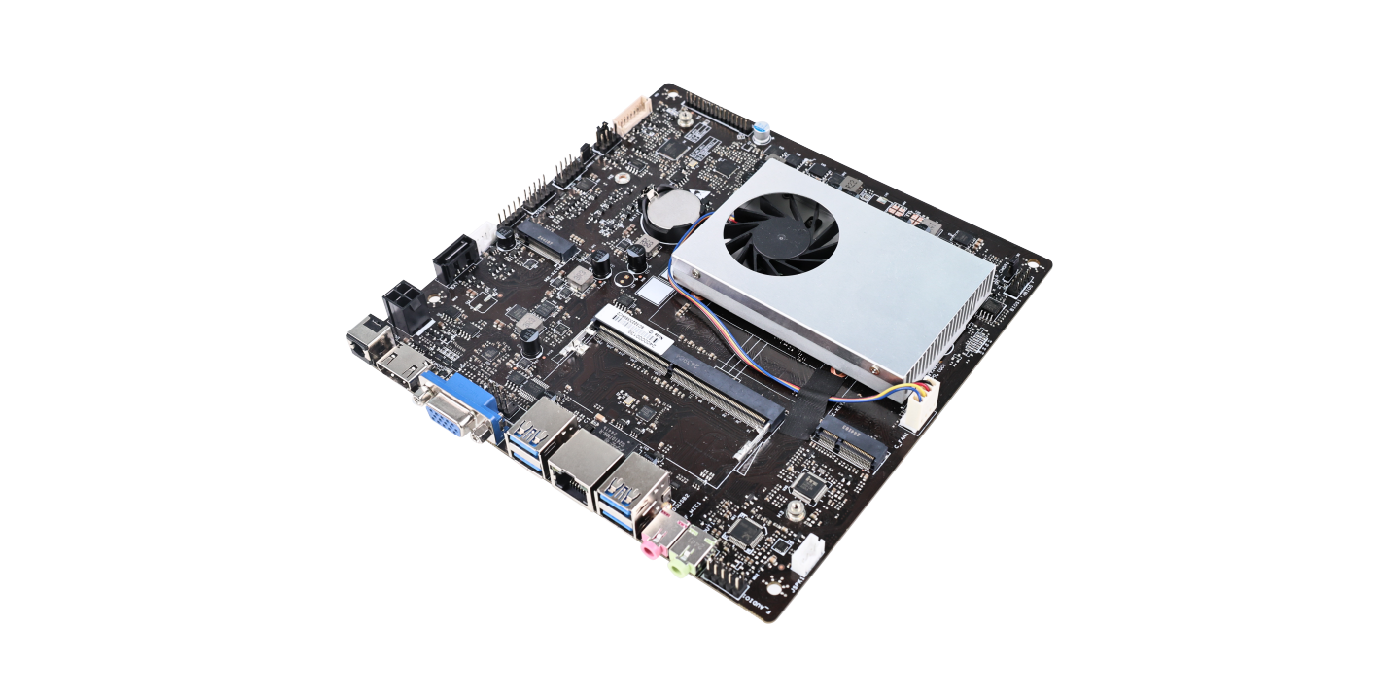

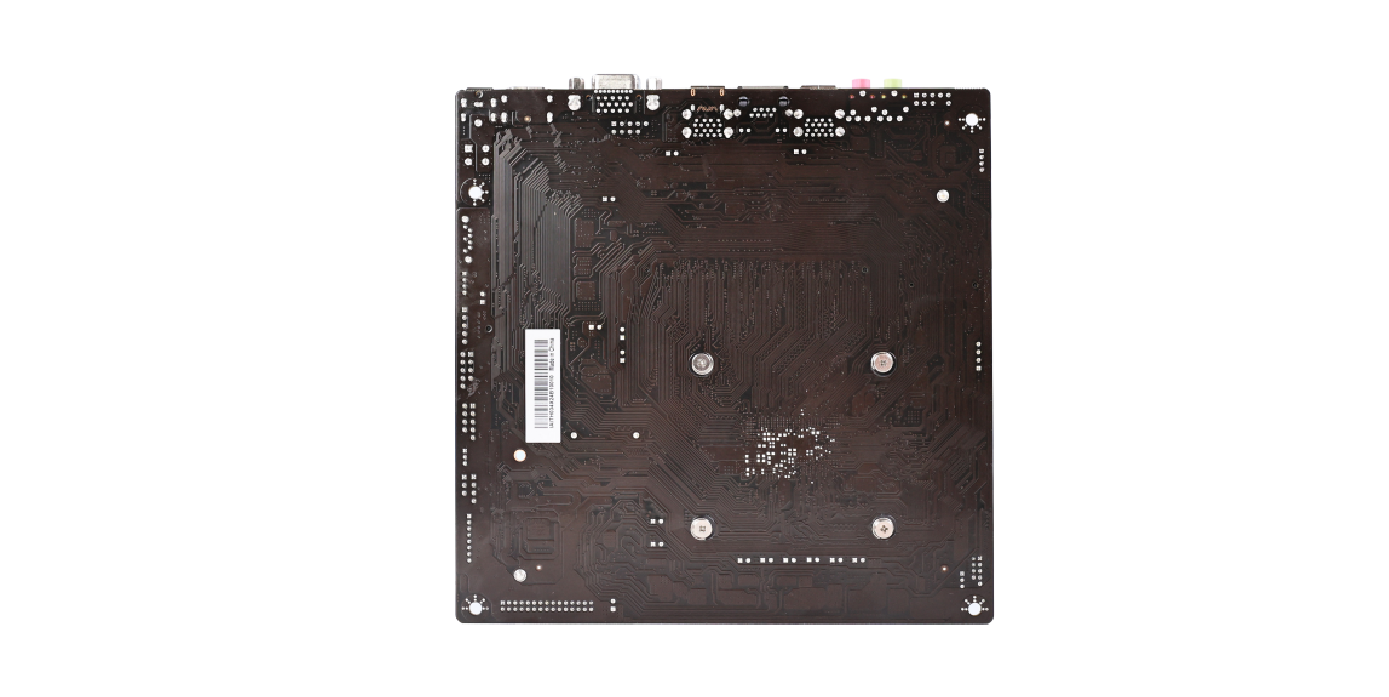

JWIPC JADNTH03 all-in-one motherboard is based on the Intel Twin Lake platform processor; it supports single-channel DDR4 memory, SATA/NVME mode M.2 SSD, and various network access modes including RJ45/WIFI/BT. It also supports a wide range of peripheral interfaces, making it suitable for different types of all-in-one machines in the industry.
- •
- Based on the Intel Twin Lake platform
- •
- Single-channel SO-DIMM DDR4 memory
- •
- 1×M.2 2230 slot (supports WIFI/BT)
- •
- 1×M.2 2280 slot (supports SATA/NVME mode)
- •

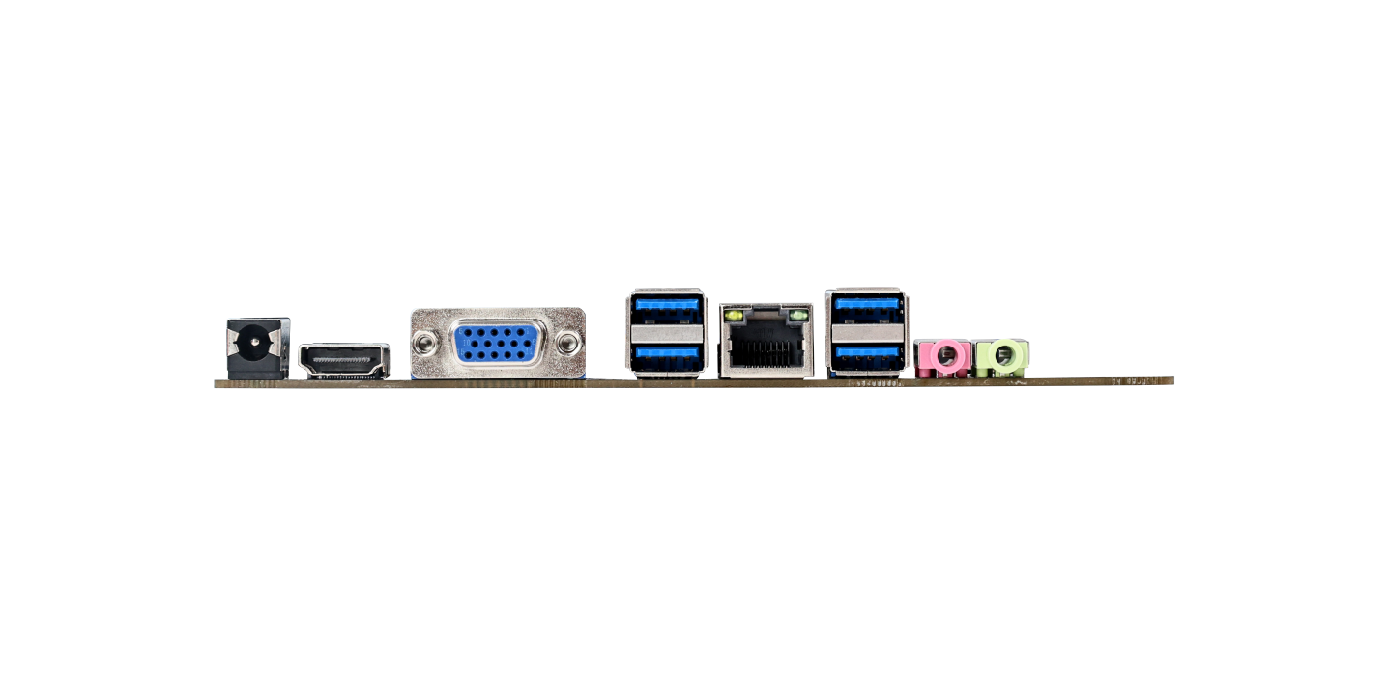

- Rear IO provides 4×USB3.0 ports
- •
- Onboard pin header can expand 3 USB2.0 ports
- •
- 1 x HDMI, 1 x LVDS
- •
- 1 x COM (optional 1 x VGA)
- •
- 1 x Gigabit network card, supports Wake-on-LAN function
- •
- Supports LVDS gravity sensing (Sensor version only)
CPU | N150: Quad-core 0.8GHz (max turbo frequency: 3.6GHz), TDP: 6W |
Chipset | Twin Lake |
Graphics | Intel integrated graphics |
Memory | 1×DDR4 SO-DIMM DDR4 2933MHz/3200MHz Max: 16G |
Display Interface | 1x HDMI, 1x LVDS, 1x VGA (optional) |
Audio | Realtek ALC897 High Definition Audio Chip |
Storage | 1× M.2 2280 Slot (supports SATA/NVME mode) |
1× SATA3.0 Interface + 1× SATA Power Interface | |
Network | 1× RJ45 Gigabit Ethernet Port, RTL8111M |
WiFi | 1× M.2 2230 Slot (supports WIFI/BT) |
Serial Port | 1× COM Interface (optional 1× VGA interface); Onboard: Provides 1 x 9-pin header (usable as COM onboard header when VGA is selected) |
Audio Interface | 1 x Line out, 1 x Mic in; 3.5mm Audio Jack 1 x F_Audio Header (2 x 5-1 2.54mm specification); 1 x 4-pin Speaker Interface (3W/4Ω x2) |
USB Interface | Rear IO: 4× USB3.0 Onboard: 2 sets of USB2.0 headers, expandable to 3 USB2.0 ports |
LVDS | 1×LVDS 30PIN pin header, 1×LCD_VOL_SEL display voltage jumper (5V/12V) 1×4PIN KEY pin header, 1×LVDS_OFF jumper |
Backlight | 1×8PIN INVERTER interface (backlight +/-) |
Pin Headers | 1×4PIN CPU fan |
Others | 1×FPANEL panel pin header, 1×BIOS pin header, 1×DC socket |
Power Input | 12V DC IN, 2.5/5.5 DC Jack power interface |
BIOS Support | 128M flash ROM, AMI UEFI BIOS, PC Health |
Dimensions | Thin Mini-ITX motherboard specification, 170mm x 170mm x 4L |
Operating Temperature | -10~50 degrees Celsius |
Operating Humidity | 10%~90% non-condensing |
Storage temperature | -20~70 degrees Celsius |
Non-operating humidity requirement | 5%~95% non-condensing |
Operating system | Win10 / W11 / Ubuntu |
