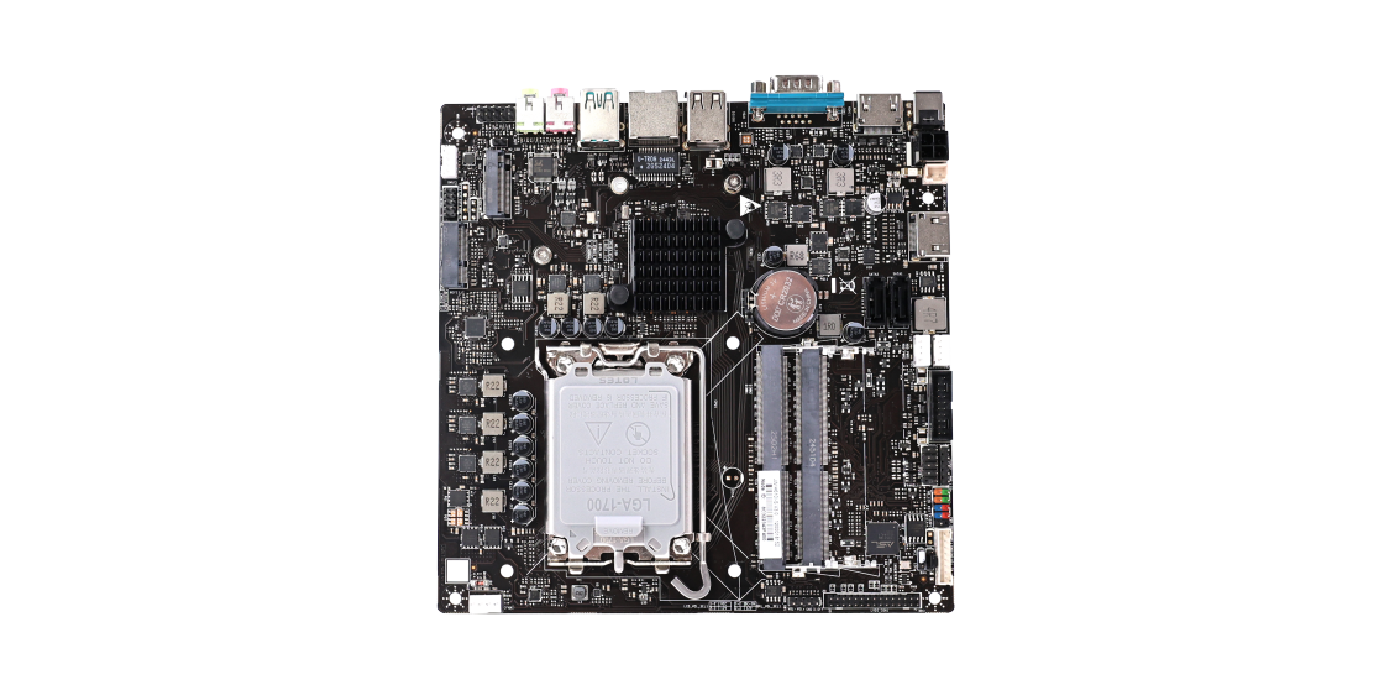

JRPHIX01 motherboard is a standard 2 SO-DIMMS ITX desktop motherboard, based on Intel Alder Lake/Raptor Lake-H/P/U platform design, with a wealth of external interfaces, can be widely used in home, office, gaming etc., with low power consumption, high performance characteristics.
- •
- Based on Intel Alder Lake/Raptor Lake-H/P/U platform
- •
- ITX small board: 170 x 190mm
- •
- 2 x SO-DIMM DDR5 memory slots support a maximum of 64 GB
- •
- 1 x M.2 2242/2280 SSD Port, 2 x SATA Gen3 Port
- •
- 9 x USB2.0/3.0
- •
- 1 x M.2 WIFI Key E 2230 (WIFI+BT+CNVI)
- •
- 1 x HDMI, 1 x DP
- •
- Gigabit network card, support network wake-up function
- •
- 4+1PHASE power supply, CPU power consumption 45W
CPU | Intel Alder Lake/Raptor Lake U/P/H CPU |
Chipset | SOC |
Graphics | PCIE/onboard |
Memory | 2 x SO-DIMM DDR5 5200 MHz, up to 64G (32GB per DIMM) |
system | Windows 11 |
BIOS | AMI |
storage | 1 x M.2 2242/2280 supports PCIE GEN4 X4 |
2 x SATA Gen3 Port | |
Audio | HD Audio IC, ALC897 |
network | 1 x 1000M network interface |
1 x M.2 WIFI/BT horizontal slot | |
Display Interface | 1 x DP port, 1 x HDMI port |
Audio Interface | 1 x Line in, 1 x Line out, 1 x Mic in; 3.5mm Audio Jack |
1 x 9pin connector, 2*5-1 2.54mm | |
USB interface | Rear IO: 2 x USB2.0, 2 x USB3.2 Gen1 (5G) |
Onboard: 3 x USB2.0, 2 x USB3.2 Gen1 (5G) | |
Serial Port | 1 x 9pin connector, 2*5-1 2.54mm specification |
Extensions | 1 x PCI Express4.0 x16 slot (X8 signal) |
Front Panel | 1, 2*5pin-1 (2.54 pin header) |
other | FAN: 1 x CPU fan 4Pin pin, 1 x chassis fan 4Pin pin |
1 x CLR_CMOS 3Pin header, 1 x JBIOS_TPM 2*6Pin-1 header | |
Power Input | 24PIN + 4PIN power supply interface |
Product size | ITX motherboard specification, 170 x 190 mm |
Operating temperature | -5~50 degrees Celsius |
Working humidity requirements | 10%~90% no condensation |
Storage temperature | -20~70 degrees Celsius |
Non-operating humidity requirements | 5%~95% no condensation |
