S094H

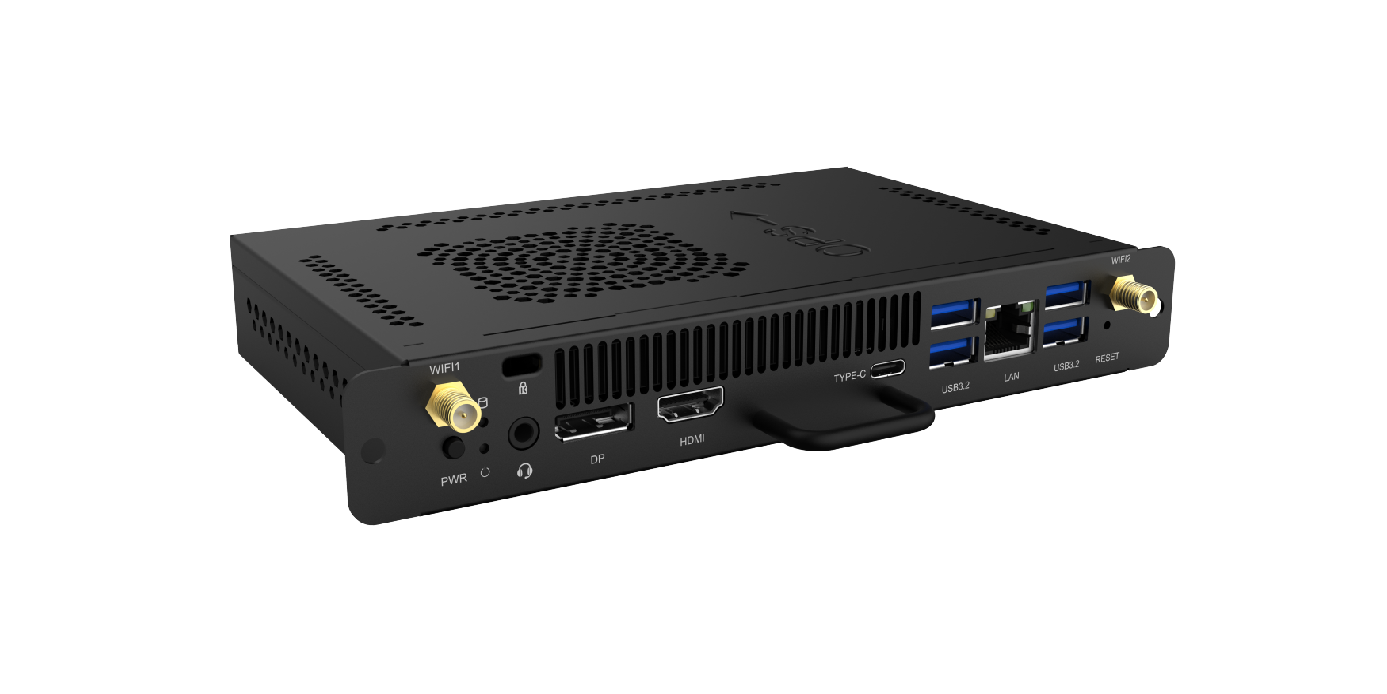

S094H OPS module is based on Intel 11th Gen Tiger Lake platform design, which deliver Intel Tiger Lake H platform performance for education or conference solution. S094H complying with Intel Open Pluggable specification, for easy installation, upgrade, and maintenance. The OPS also feature TPM2.0 to ensure data security.
- •
- Intel Tiger Lake Platform Processor
- •
- Dual Channels SO-DIMM DDR4, Max. 64G
- •
- 1 x KeyM M.2 2280 NVMe/SATA SSD
- •
- 1 x KeyB M.2 2242 SATA SSD
- •
- 4 x USB3.2 Gen1, 1 x Type-C(USB3.2 Gen1 )
- •
- Display: 1 x HDMI (4K@30Hz), 1 x DP1.2 (4K @60Hz)
- •
- 1 x RJ45, M.2 KeyE 2230 Mini PCIe Or CNVI
CPU | CPU | Intel® Core™ I5-11400H/ I5-11500H Intel® Core™ I5-11500B Processor |
Chipset | HM570 /WM590 | |
TDP | 28W | |
System | Memory | Dual Channels SO-DIMM DDR4-3200MHz Max. 64G |
Storage | 1 x KeyM M.2 2280 NVMe/SATA SSD 1 x KeyB M.2 2242 SATA SSD | |
OS | Windows11/Linux | |
WatchDog | Support | |
Auto Power On | Support | |
RTC Alarm | Support | |
Power Input | 12~19V DC IN, 2.5/5.5 DC Jack & JAE 80PIN | |
Dimension | 119mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -5~45℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Storage Humidity | 10%~90% non-condensing | |
Display | Graphic card | Intel® UHD Graphics |
Multi displays | 3 simultaneous 3 displays | |
Interface | 1 x HDMI-out 4K @30Hz 1 x DP-out 4K @60Hz 1 x 80PIN(1 x HDMI2.0 out 4K @60Hz ) | |
Network | Lan IC | 1 x Realtek RTL8111H |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45 Port | |
Wireless Type | M.2 KeyE 2230 Mini PCIe Or CNVI | |
Wireless Interface | Intel AX101, AW-CB515 | |
4G | NA | |

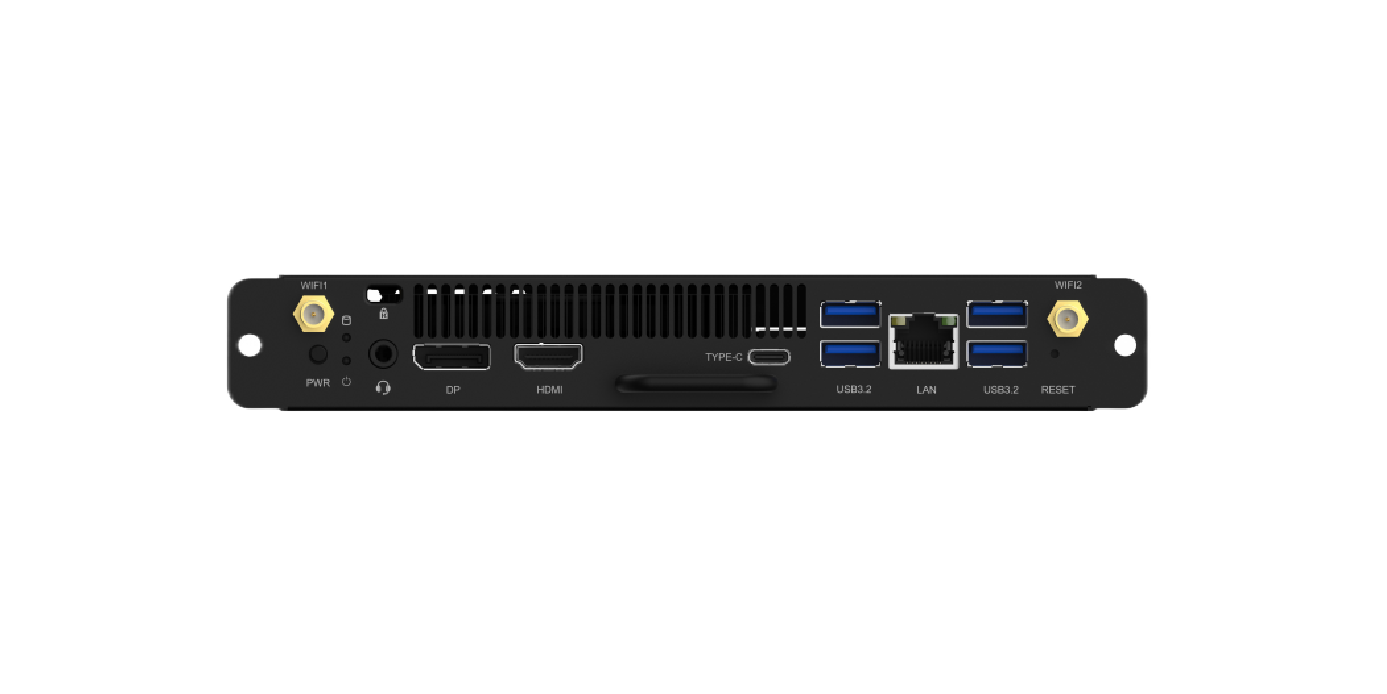

I/O interface | Display | 1 x HDMI-out (4K@30Hz) 1 x DP1.2 (4K @60Hz) |
USB | 4 x USB3.2 Gen1 1 x Type-C(USB3.2 Gen1 ) | |
Button | 1 x PowerButton, 1 x Reset Button | |
Antennas | 2 x Antennas | |
AUDIO | 1 x Line Out & MIC-In 2 In 1 Connector | |
POWER | 1 x 2.5/5.5 DC-IN Connector | |

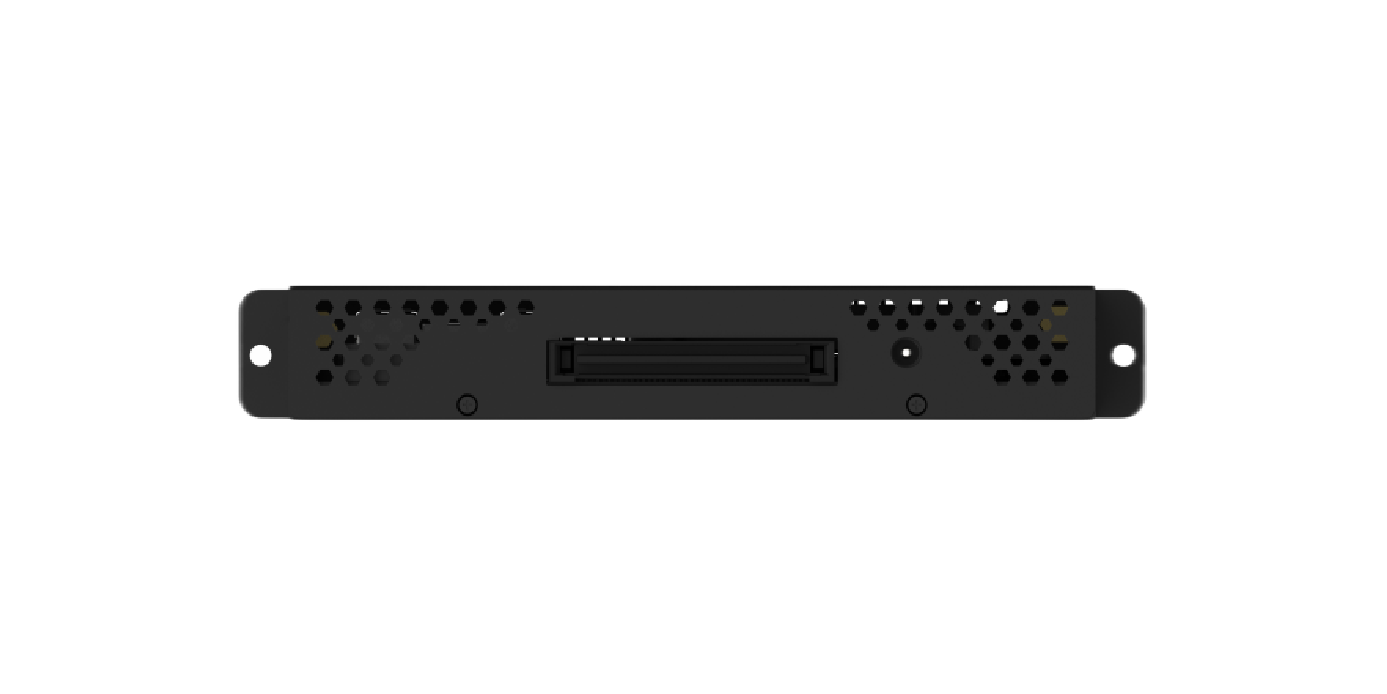

JAE | 1 x HDMI2.0 4K @60Hz output, 2 x USB2.0 Type-A, 1 x USB3.0,1 x TTL |
