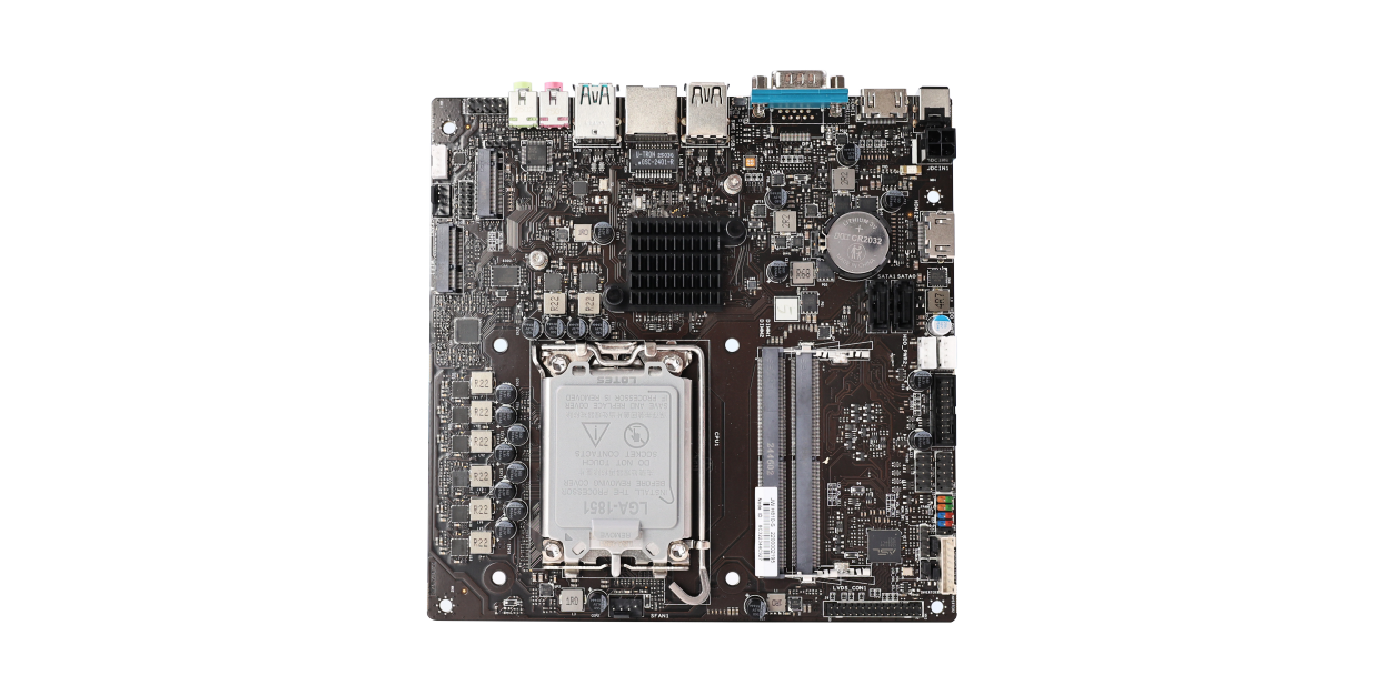

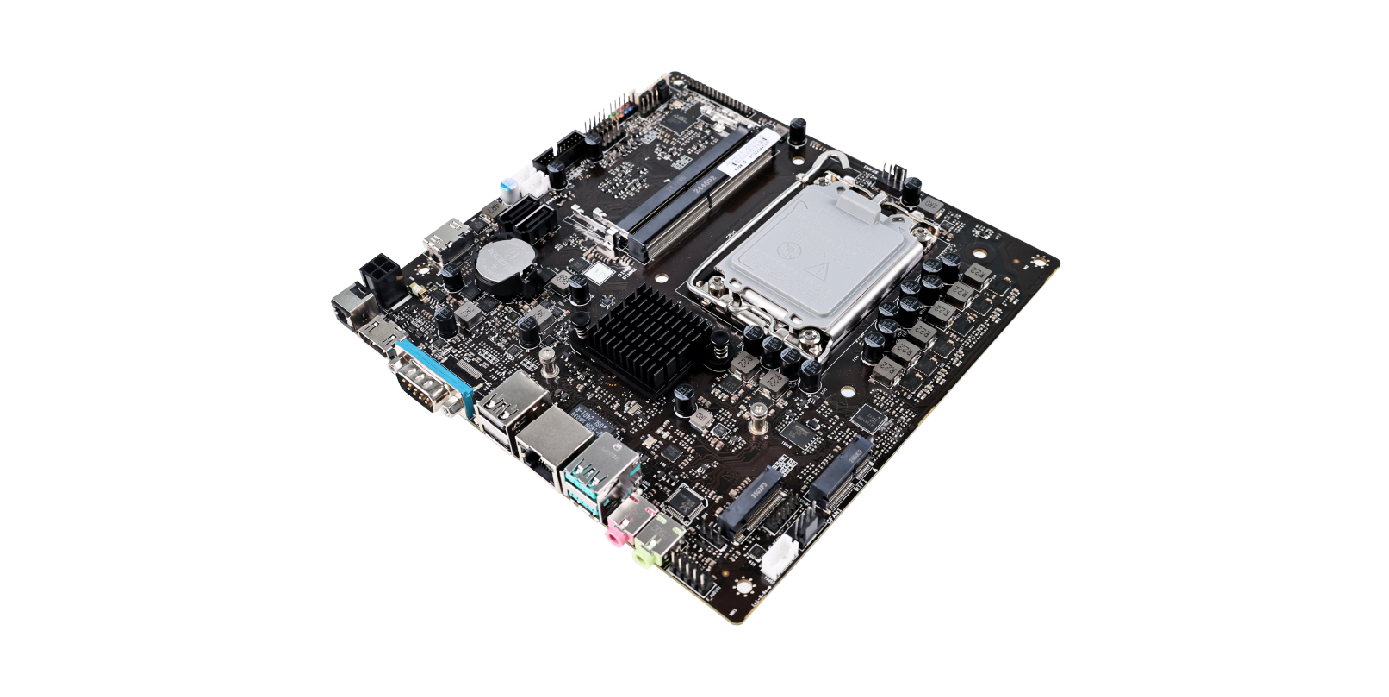

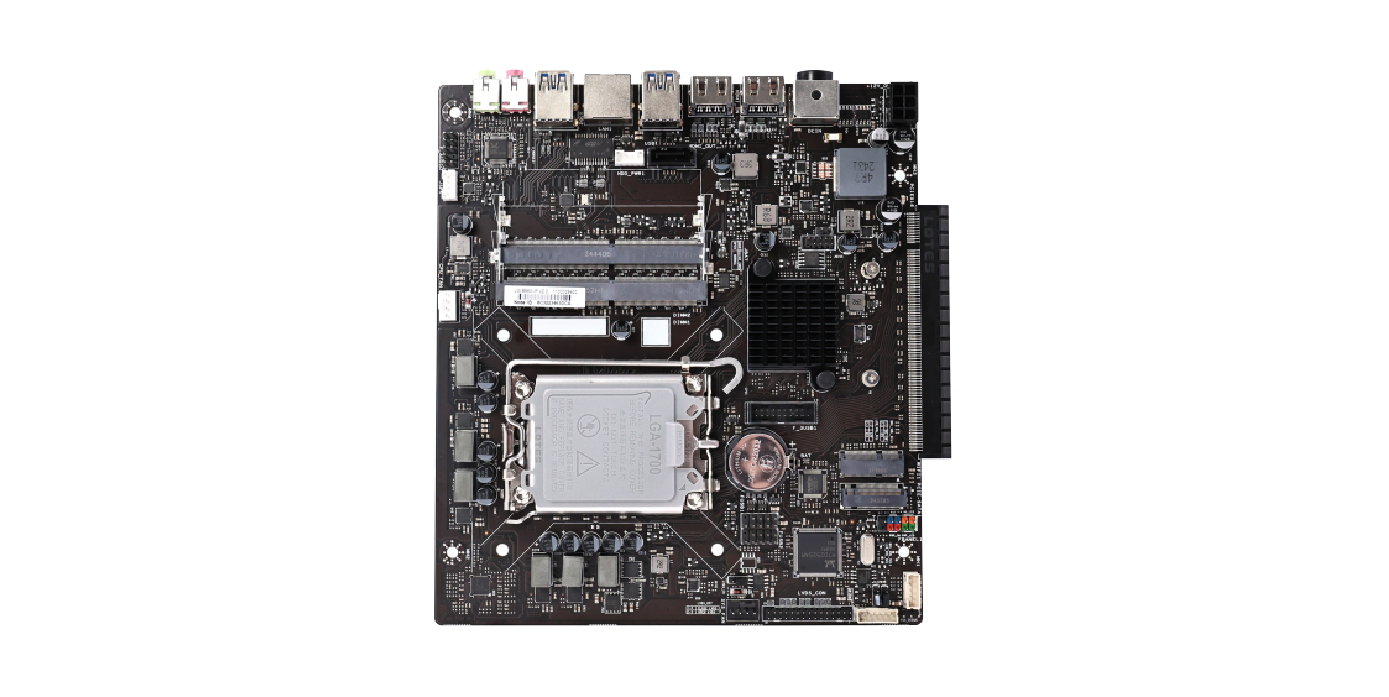

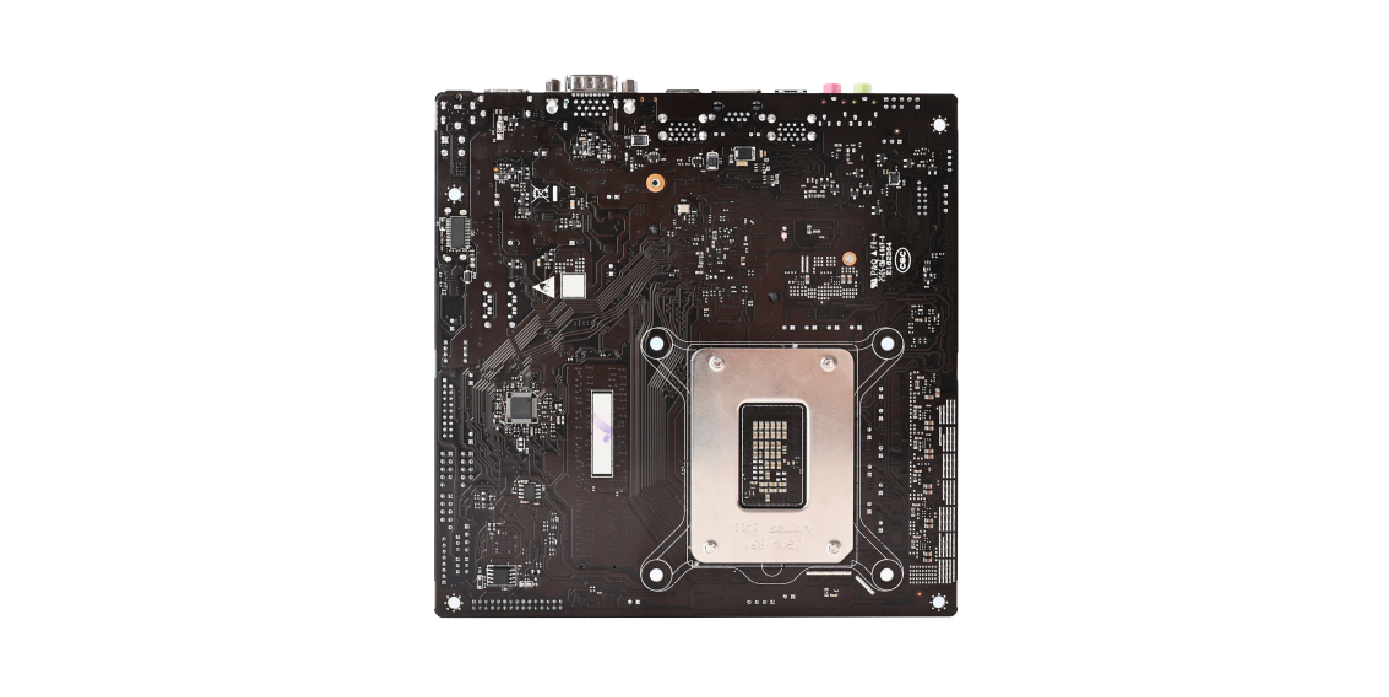

JARLTH02
JWIPCJARLTH02 all-in-one motherboard, based on the Intel Core Ultra 2nd Generation Arrow Lake platform processor, supports dual-channel DDR5 memory, SATA/NVME mode M.2 SSD, and various network access modes including RJ45/WIFI/BT/CVNI; it also supports a wide range of peripheral interfaces, suitable for various types of all-in-one machines in the industry.
- •
- Based on the Intel Arrow Lake platform
- •
- Supports Intel Core Ultra 2nd Generation processors
- •
- Dual-channel SO-DIMM DDR5 memory
- •
- 1×M.2 2230 slot (supports WIFI/BT/CNVI)
- •
- 1×M.2 2280 slot (supports SATA/NVME mode)
- •

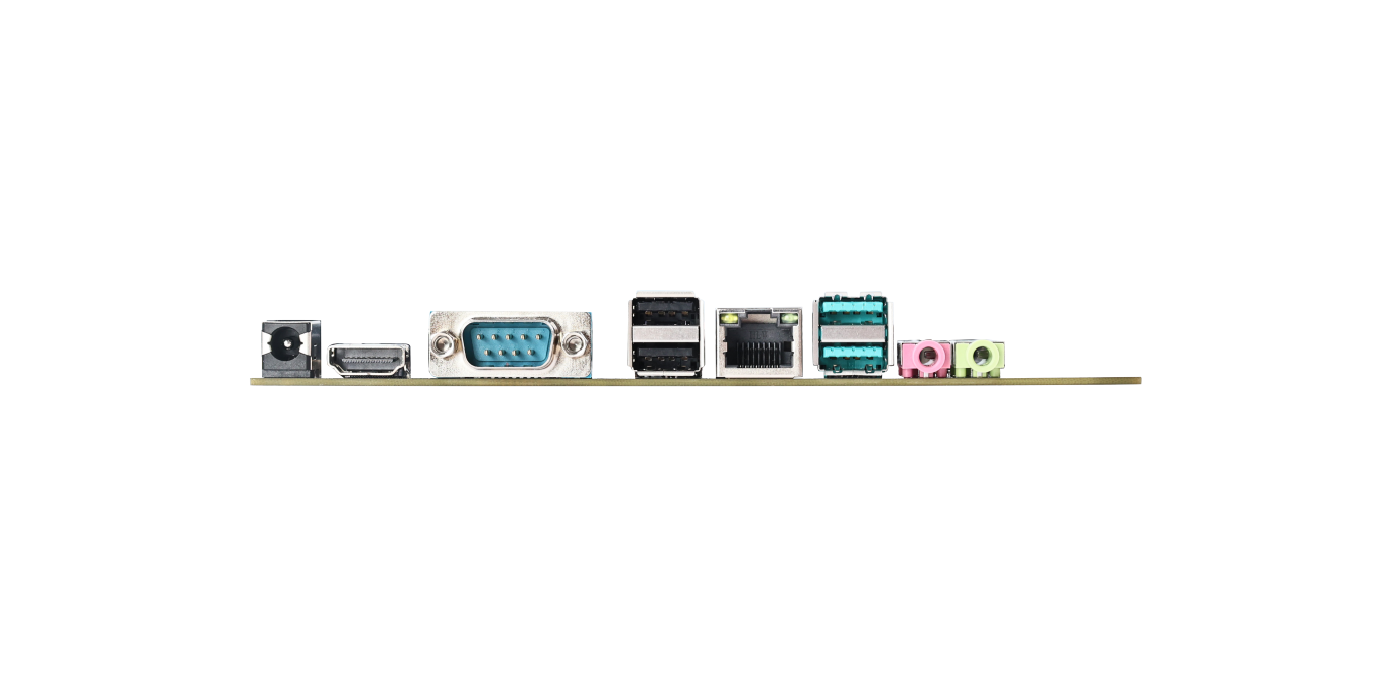

- Rear IO provides 2×USB3.2 Gen2, 2×USB2.0
- •
- Onboard pin headers can expand to 3 USB2.0 ports, 2 USB3.2 Gen1 ports
- •
- 2 x HDMI, 1 x LVDS (supports up to 120Hz), 1 x COM/VGA/DP
- •
- 1 x Gigabit Ethernet card, supports Wake-on-LAN function
- •
- Supports LVDS gravity sensing (Sensor version only)
CPU | Intel Core Ultra (Series 2) TDP: 65W; LGA1851 |
Chipset | Intel H810 chipset |
Graphics | Intel integrated graphics |
Memory | 2×DDR5 SO-DIMM DDR5 4800MHz/5200MHz/5600MHz Max: 64G |
Display Interface | 1x HDMI; 1x HDMI (optional side output); 1x COM (optional VGA/DP); 1x LVDS |
Audio | Realtek ALC897 High Definition Audio Codec |
Storage | 1× M.2 2280 slot (supports SATA/NVME mode) |
2× SATA3.0 ports + 2× SATA power connectors | |
Network | 1× RJ45 Gigabit Ethernet port, RTL8111M |
WiFi | 1× M.2 2230 slot (supports WIFI/BT/CNVI) |
Audio Interface | 1 x Line out, 1 x Mic in (3.5mm Audio Jack) 1 x F_Audio header (2 x 5-1 2.54mm specification) |
1 x 4pin speaker connector (3W/4Ω x2) | |
USB Interface | IO Interface: 2× USB3.2 Gen2; 2× USB2.0 Onboard Headers: 2 sets of USB2.0 headers (expandable to 3 USB2.0 ports) 1 set of USB3.0 headers (expandable to 2 USB3.2 Gen1 ports) |
LVDS | 1×LVDS 30PIN connector (supports up to 120Hz), 1×LCD_VOL_SEL display voltage jumper (5V/12V) 1×4PIN MON_SW connector, 1×LVDS_OFF jumper |
Backlight | 1×8PIN INVERTER interface (backlight +/-), 1×BKL_VOL backlight voltage jumper (12V/19V) |
Pin Headers | 1×FPANEL panel connector, 1×4PIN CPU fan, 1×4PIN SYS fan |
Others | 1×4PIN DC socket, 1×BIOS socket |
Power Input | 12~19VDC IN, 2.5/5.5 DC Jack power interface |
BIOS Support | 128M flash ROM, AMI UEFI BIOS, PC Health, WOL |
Dimensions | Thin Mini-ITX motherboard specification, 170 x 170 mm |
Operating Temperature | -10~50 degrees Celsius |
Operating Humidity | 10%~90% non-condensing |
Storage temperature | -20~70 degrees Celsius |
Non-operating humidity requirement | 5%~95% non-condensing |
Operating system | Win10 / W11 / Ubuntu |
