JRPHTH01_D4

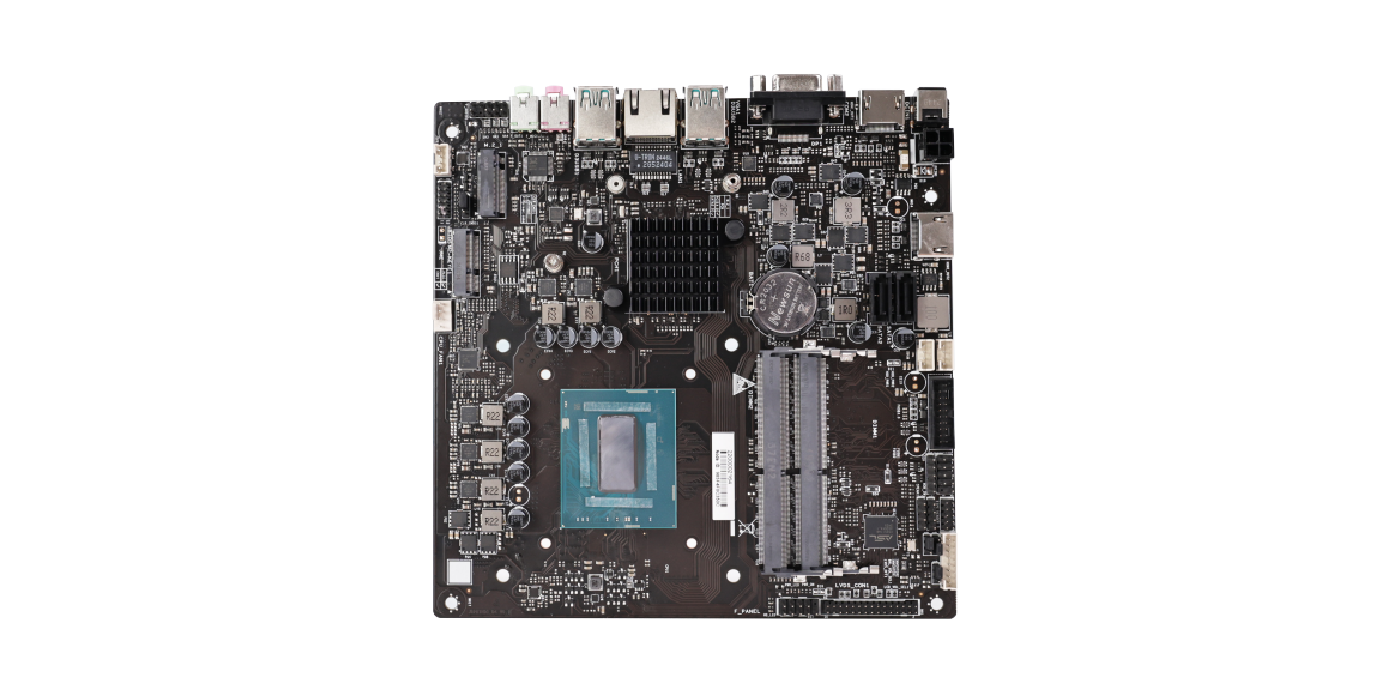

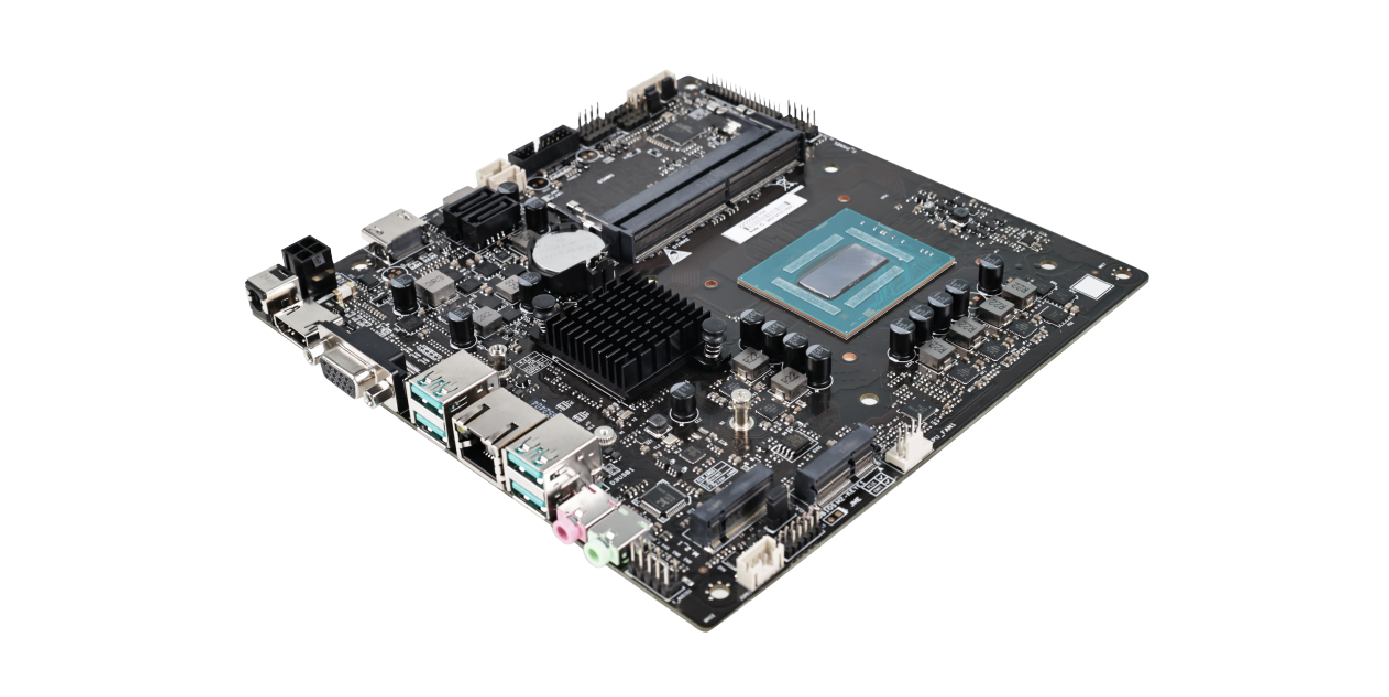

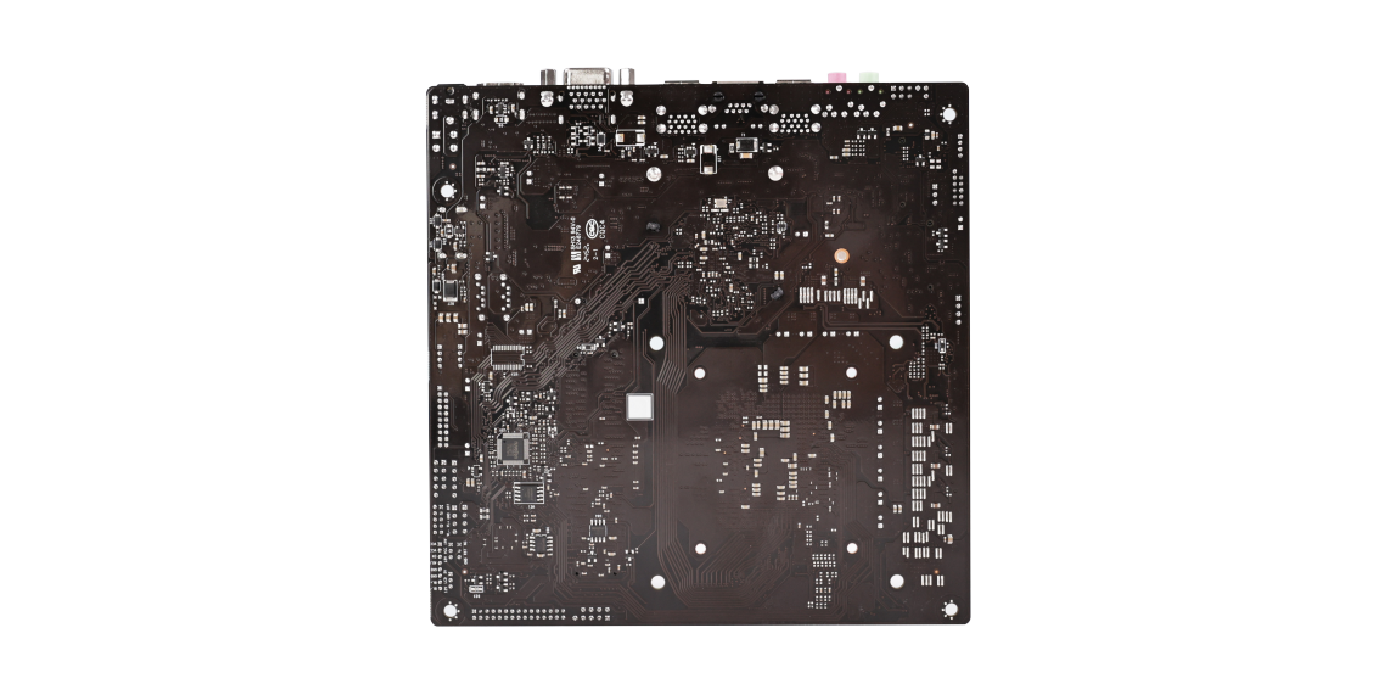

JW JRPHTH01_D4 standard Thin-MINI ITX all-in-one motherboard, designed based on the Intel Alder/Raptor Lake-HX platform. The motherboard supports dual-channel DDR4 memory, NVME mode M.2 SSD, and PCIE/CNVI mode WiFi+BT wireless network access. It features a wide range of external expansion interfaces and can be adapted to different types of products such as PCs, AIOs, and mini PCs.
- •
- Based on Intel Alder/Raptor Lake-HX Platform
- •
- Designed with 4+1+1 PHASE power supply, CPU power consumption 55W
- •
- Dual-channel SO-DIMM DDR4 memory interface
- •
- 1 x M.2 2230 slot (supports WiFi, BT)
- •
- 1 x M.2 2280 slot (supports NVME SSD)
- •

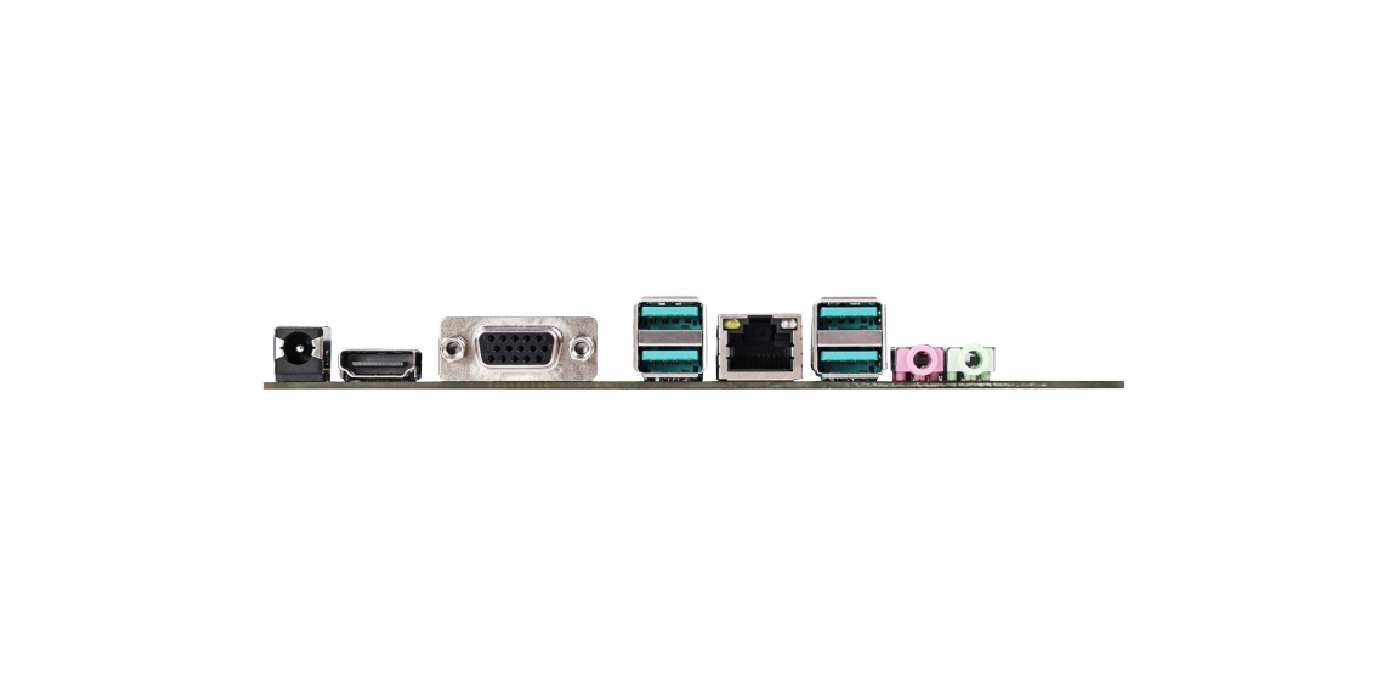

- Rear IO provides 4×USB3.2 Gen2 Type-A ports
- •
- Onboard pin headers can expand to 2×USB3.0, 3×USB2.0 ports
- •
- Onboard 2 x HDMI, 1 x VGA (optional DP/COM), 1 x LVDS
- •
- Integrated Gigabit Ethernet card (supports Wake-on-LAN)
CPU | Intel I5-14450HX |
Chipset | HM670/HM770 |
Graphics Card | Intel UHD Graphics |
Memory | 2 x SO-DIMM DDR4 3200 MHz, supports up to 64GB (32GB per DIMM) |
System | WINDOWS 11 |
BIOS | 128M flash ROM, AMI UEFI BIOS, PC Health, WOL |
Storage | 1 x M.2 2242/2280, supports PCIE GEN4x4 NVME SSD |
2 x SATA Gen3 Port (2 x SATA Power) | |
Network | 1 x 1000M RJ45 network interface |
1 x M.2 2230 WIFI/BT slot (supports PCIe/USB/CNVi mode) | |
Display Interface | 1 x HDMI interface; 1×HDMI interface (side output); 1 x VGA (optional, with COM/DP COLAY) |
Audio Interface | 1 x Line out, 1 x Mic in (3.5mm Audio Jack) 1 x F_AUDIO, 9-pin header, 2*5-1 2.54mm specification |
1 x 4-pin speaker interface (3W/4Ω x2) | |
USB Interface | Rear IO: 4 x USB3.2 Gen2 (10G) Onboard: 3 x USB2.0, 2 x USB3.2 Gen1 (5G) |
LVDS | 1×LVDS 30PIN pin header, 1×LCD_VOL display voltage jumper (5V/12V) 1×4PIN MON_SW pin header, 1×LVDS_OFF jumper |
Backlight | 1×8PIN INVERTER interface (Backlight +/-), 1×BKL_VOL backlight voltage jumper (12V/19V) |
Serial port | 1 x COM (optional, shared with VGA/DP COLAY) |
Front panel | 1 x F_PANEL, 2*5pin-1 (2.54 pin header) |
Others | 1 x CPU fan 4Pin pin header, 1 x CLR_CMOS 3Pin pin header, 1 x JBIOS_TPM 2*6Pin-1 pin header |
Power input | 12~19V DC IN, 4PIN ATX socket |
Dimensions | Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L |
Operating temperature | -10~50 degrees Celsius |
Operating humidity | 10%~90% non-condensing |
Storage temperature | -20~70 degrees Celsius |
Non-operating humidity requirements | 5%~95% non-condensing |
